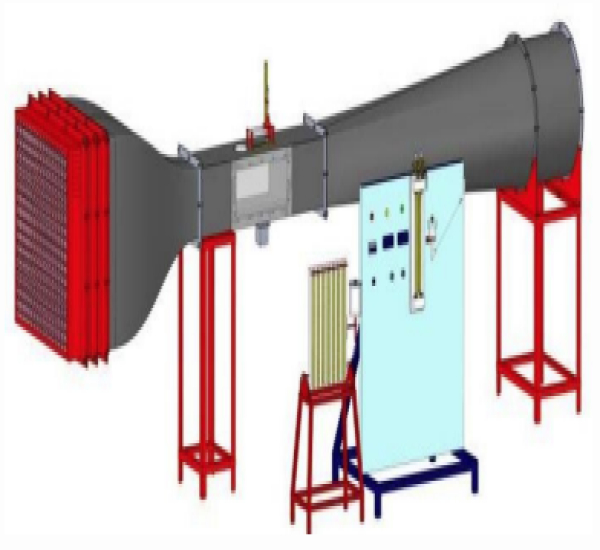

RLHM-103 Wind Tunnel Test Rig (Variable Speed with AC Motor)

Product Code : RLHM-103

“WIND TUNNEL” has been developed to perform various experiments of aerodynamics and fluid flow. This is a open circuit Wind Tunnel provides a region of controlled air flow into which models can be fitted at downstream of working section. The Tunnel consists of bell mouth shaped entry to guide the air smoothly into settling chamber and stabilizes the air flow this follows working section for test section where various models can be tested. Test section with acrylic sheet, will be provided for visual observation. Working section is followed by diffuser section which reduces the dynamic pressure at the exit. A fan coupled with motor is used to produce desired wind velocity.

EXPERIMENTATION

➢To plot speed curve for wind tunnel.

➢Other experiments as per accessories provided

UTILITIES REQUIRED

➢Electricity Supply : 3Phase, 440V AC, 3 KW

➢Floor Area: 5.0 x 3.5 m

TECHNICAL DETAILS

➢ Variable Speed : 3HP Crompton make motor with Speed Controller

➢ Type : Open Type Wind Tunnel.

➢ Test Section : 300 x 300 x 1000 mm.

➢ Blower : Compatible Capacity

➢ Air Velocity : Maximum 30 m/s (in Test Section).

➢ Digital Force Indicator : For Lift and Drag force, make-Reliant Lab

➢ Multiple Manometer : 0-40° inclination with vertical axis.

➢ U Tube Manometer : Length 500 mm.

➢ Inclined manometer : 300 mm (For cylinder)

➢ Pitot Static Tube : For Velocity Measurement, with consistent velocity sensor as designed

➢ Aerofoil:

1. NACA 0015

2. Clark-Y

3. Clark-Y with camber removed

➢ To measure lift & drag on aerofoil model.

➢ To study pressure distribution around models provided

➢An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
