Discharge Over Notches Apparatus

Price: ----------

SKU: RLFM-103

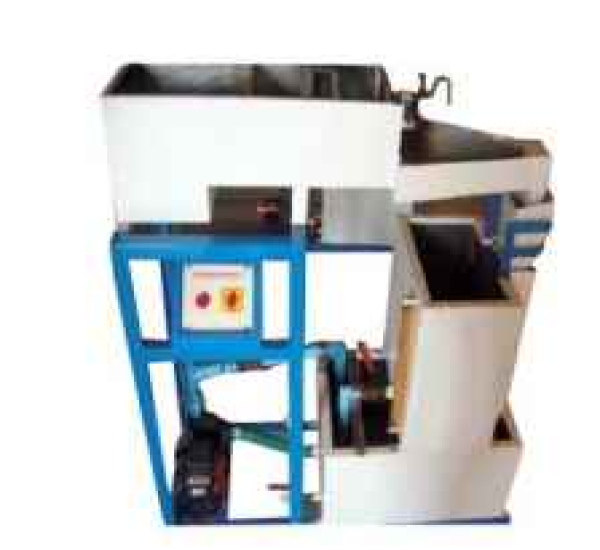

The Lab setup consists of a channel having sufficient length and width in which water is supplied from the bottom. Required Notch is fitted at one end of this channel .A hook gauge with Vernier scales fitted to measure the height of fluid in flow channel. Arrangement for fixing interchangeable notches is made. Set of three brass notches. i.e. rectangular notch . 60V notch & 45V notch provided along with the set up. Present set up is self contained water re·circulating unit provided with a sump tank and centrifugal pump Etc Flow control valve and by· pass value are fitted in water line to conduct the experiment on different flow rate, Flow rate of water is measured with the help of measuring tank and stopwatch

EXPERIMENTATION :

➢To Determine Co-efficient of discharge (Cd ) through V notch145deg. and 60 deg.)

➢Rectangular Notch.

➢Trapezoidal Notch.

UTILITIES REQUIRED :

➢Water Supply & Drain

➢Electricity 0 . 5kw. 220V AC, Single Phase

TECHNICAL DETAILS :

➢Channel Test Section Notches- Size600x250x180mm MaterialBrassf3Nos 1. Rectangular Notch 2. 45 deg. V Notch 3. 60 deg. V Notch 4. Trapezoidal Notch

➢Hook / Pointer - With Vernier Scale

➢Water Circulation Flow Measurement - FHP Pump. Crompton/Sharp make. Using Measuring Tank with Piezometer, Cap.25 Ltrs.

➢Sump Tank - Capacity 70.6 Lt

➢Stopwatch - Electronic

➢Control panel- on/off switches, Main indicators

➢The whole setup is well designed and arranged in a good quality, painted Structure

➢Tanks will be made of stainless steel
