RLHM-110A Reciprocating Pump Test Rig (With 3 Prefixed Speeds)

Price: -------

SKU: RLHM-110A

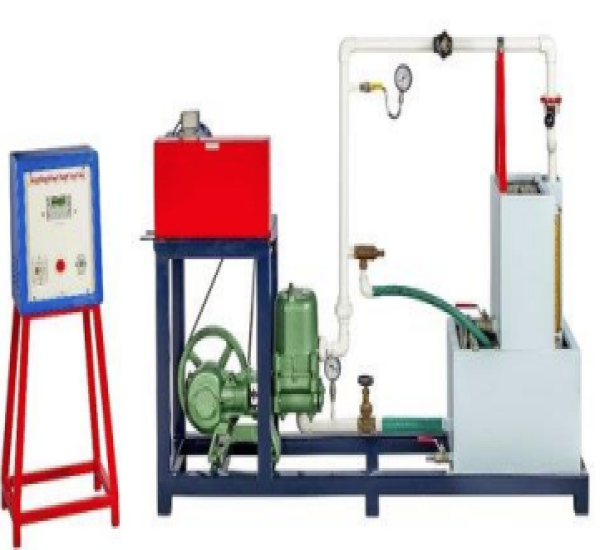

The present Reciprocating Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Double acting, Single Cylinder Reciprocating Pump coupled with a AC Motor. Flow of water is measured by using measuring tank and stopwatch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.

EXPERIMENTATION

➢To determine the characteristics of reciprocating pump and to find out total head, pump efficiency, overall efficiency & volume metric efficiency.

➢ To plot the graph:
• Head VsDischarge
• Discharge Vs Pump efficiency

UTILITIES REQUIRED

➢ Electricity supply: Single phase, 220V AC, 50 Hz, 5-15 amp combined socket with earth connection.

➢ Earth voltage should be less than 5 volts.

➢ Water Supply (Initial fill).

➢ Drain Required.

➢ Floor Area Required : 1.5 m x 0.75 m

TECHNICAL DETAILS

➢ Pump : Double acting, Single Cylinder, Capacity 1 HP Speed 250 RPM (max.), Head 5 kg/cm2 (max.)

➢ Medium Flow : Clear Water

➢ Drive : 1HP motor, Crompton/Standard make having Step Cone Pulley for Three different speeds.

➢ Sump Tank : Capacity 50 Ltrs.(approx.)

➢ FlowMeasurement : Using Measuring Tank with piezometer, Capacity 25 Ltrs.(approx.)

➢ Stop Watch : Electronic

➢ Pressure Gauge : Bourdontype

➢ Control Panel Comprises of : RPM measurement : Digital RPM Indicator Energy measurement : Electronic Energy meter, L&T make. MCB : For overload protection Standard make On/Off Switch, Mains Indicator, etc

➢ Tanks will be made of Stainless Steel 304.

➢The pressure measuring point should be with quick release coupling and self locking made of brass All the Piping will be of Corrosion resistant material. An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
